reActor 3
Maximum performance
and rock solid reliability.
Made to Perform
reActor 3 uses server-grade 24/7 components enclosed in a rugged 4U chassis.
For ease-of-use, there is a convenient LCD display in the front, combined with 2 USB 3.0 ports and a backlit logo that intuitively communicates the current state of the server.
Media drives are easily accessible from the front.
3 Base Configurations
reActor xr3
Real-time all the way
A machine that doesn’t make any compromises!
Created specifically for the most demanding real-time content, reActor xr3 features top-of-the-line GPUs, massive amounts of RAM and flexible amounts of storage.
reActor rt3
Perfect middle ground
Designed with real-time content in mind, reActor rt3 is a ruggedized server with massive real-time rendering capabilities.
It combines them with all the pre-rendered content playback performance you will ever need.
Render beautiful Unreal Engine or Notch pixels with high frame rates and push them exactly where you want them.
reActor v3
Engineered for video playback
Engineered for high-performance playback of pre-rendered content with massive resolutions, uncompressed image sequences or several NDI streams in a single or multi-server setup.
Enclosed in a ruggedized chassis with all internal components on industrial shock absorbers and lockable connectors, it is a perfect tool for breath-taking live events and fixed installations.
1 Pre-Built Configuration

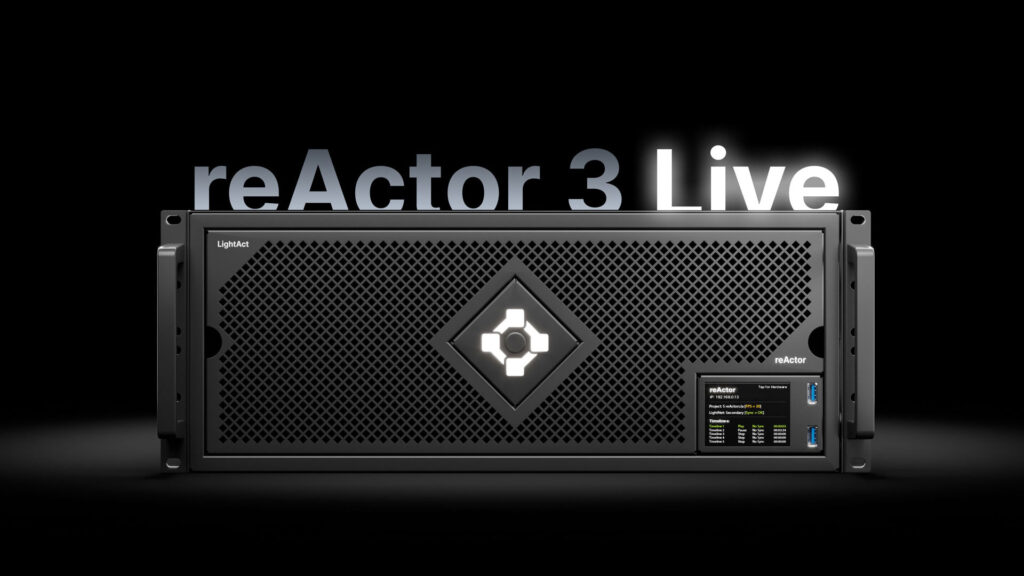

reActor Live3
reActor Live3 is a pre-built configuration of reActor rt3 created specifically for live events, touring and rental business.
Built on the foundation of reActor rt3, it comes with a number of Expansion Modules carefully selected for live events.
EasyOut Cards
EasyOut cards are video output slide-in cards installed in the back of every reActor. Every EasyOut card can output 1 x 4K at 60FPS.
They come in 2 versions: DisplayPort and HDMI and besides video format conversion they also take care of signal amplification so that it’s suitable for complex signal paths typical in a live event environment.
By default, every reActor comes with 4 DisplayPort EasyOut cards in the back.
Expansion Modules
Every base configuration of reActor 3 can be upgraded with Expansion Modules. These modules add different functionalities to your server and by combining several modules together you can be sure your reActor will have exactly the features you need.
Expansion Modules:
- GUI: additional 2 x DisplayPorts for GUI
- VIO: video input & output (various options)
- AIO: audio input & output (various options)
- Sync: Genlock & Framelock
- Net: Additional 1 x 100 Gbit network
- Out8: Additional 4 x 4K video outputs
Rugged & Easy to Handle
Every reActor is built to last and to make you achieve results faster.
Durability:
- Chassis cross support & reinforced PCI card holder
- All internal components mounted on shock absorbers
- 24/7 server-grade power supply
- Efficient cooling and airflow
- Strong handles
- Rack holding accessory
Ease of use:
- LCD display showing the state of the show
- Illuminated and machine and playstate identifying logo
- Removable media drives in the front
- An easy to clean dust filter
- Illuminated backpanel
- Daisy chained power cable
